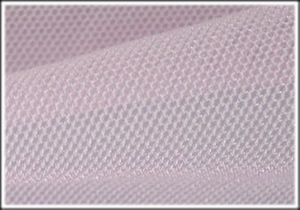

Nylon Mesh Fabric for Screen Printing
Nylon Screen Printing Mesh is woven or knitted from heat treated polyester yarn of a single strand. The extruded thread is the spun to a precise diameter.
Conventional monofilament polyester screen fabric will elongate under tension: the higher the tension level, the more the thread can stretch. At excessive tension levels, the thread reaches its "plastic deformation" point, and the screen will no longer hold tension. Nylon fabric with high tension and low elongation property becomes ideal substitute for the traditional monofilament polyester printing screen.
Specification: 6T-165T(15mesh-420mesh)
Color: yellow, white, black
Width: 0.6m-3.6m
Packing: PVC bag,carton,paper tube
Features: Low elongation, high tension strength
Specifications of Nylon Screen Printing Mesh:
FABRIC NO | MEHS COUNT | APERTURE | THREAD DIAMETER | OPENING |
mesh / inch | micron | micron | % | |
10-250 | 25 | 700 | 250 | 49 |
12-250 | 30 | 610 | 250 | 53 |
15-250 | 38 | 467 | 250 | 49 |
24-100 | 60 | 316 | 100 | 57 |
30-120 | 75 | 213 | 120 | 41 |
32-100 | 80 | 212 | 100 | 46 |
39-55 | 100 | 195 | 55 | 56 |
39-80 | 100 | 176 | 80 | 48 |
43-80 | 110 | 147 | 80 | 40.8 |
47-55 | 120 | 152 | 55 | 51 |
48-70 | 120 | 135 | 70 | 41 |
53-55 | 135 | 128 | 55 | 47 |
54-64 | 137 | 115 | 64 | 38.5 |
54-70 | 137 | 108 | 70 | 34 |
64-45 | 160 | 105 | 48 | 43 |
64-55 | 160 | 98 | 55 | 38 |
64-64 | 160 | 88 | 64 | 30 |
72-45 | 180 | 92 | 45 | 40 |
72-48 | 180 | 90 | 48 | 36 |
77-55 | 195 | 75 | 55 | 28 |
80-48 | 200 | 72 | 48 | 33 |
90-48 | 230 | 56 | 48 | 25 |
100-40 | 250 | 58 | 40 | 37 |
110-40 | 280 | 52 | 40 | 33 |
120-34 | 305 | 45 | 34 | 30.5 |
140-34 | 355 | 31 | 34 | 19.5 |
150-31 | 380 | 36 | 31 | 29 |
150-34 | 380 | 30 | 34 |
